Bosch Rexroth

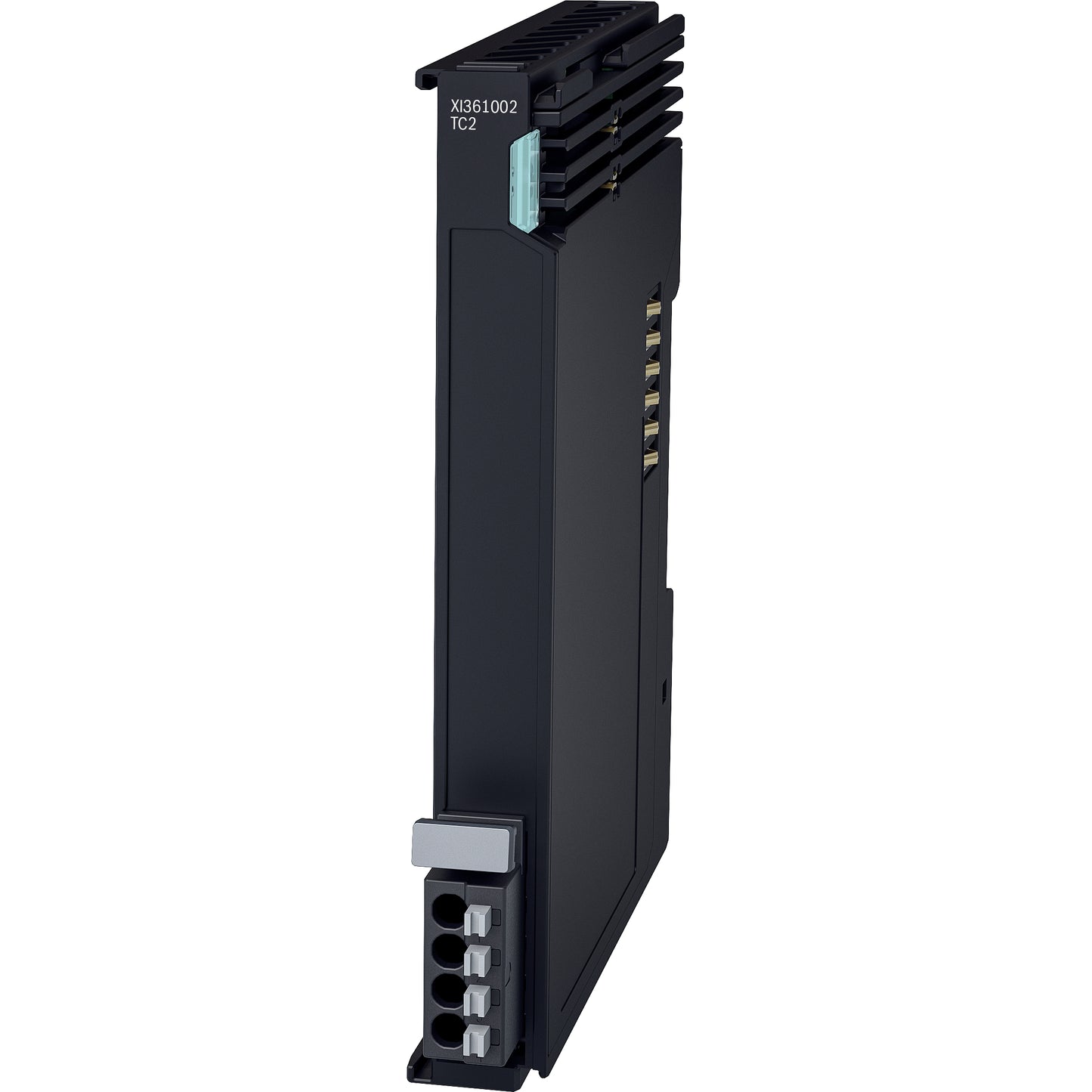

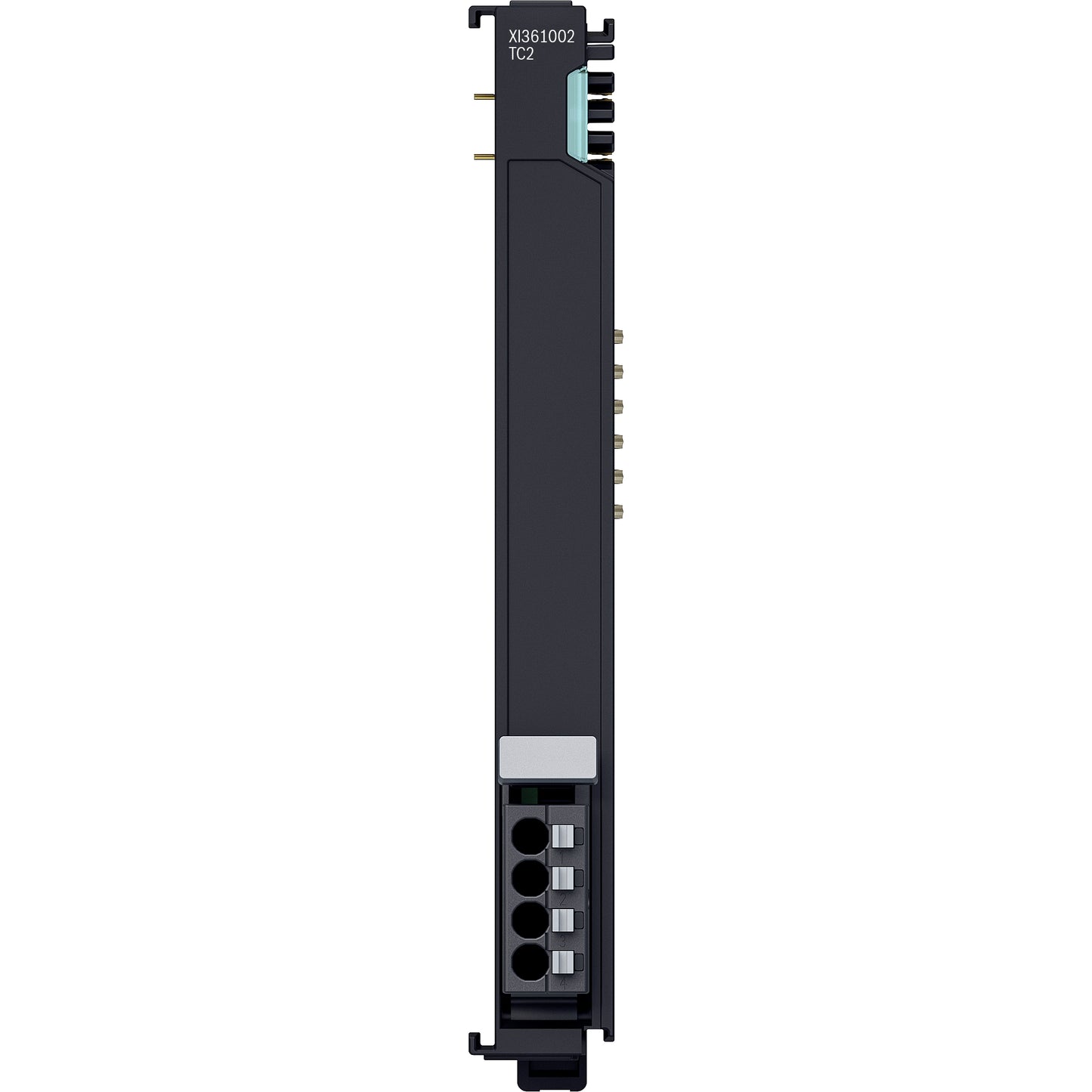

Temperature measurement module XI361002 ctrlX I/O 2-channel (thermocouples, internal CJC) - R911406108

Temperature measurement module XI361002 ctrlX I/O 2-channel (thermocouples, internal CJC) - R911406108

€285,00 EUR
€285,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager - Lieferzeit 2-5 Werktage*

The XI361002 temperature measurement module reads temperatures from thermocouples (TC) on two independent channels. The module supports common sensor types such as K, J, T and various others and has an internal cold junction compensation (CJC) that can be switched off. Error states are displayed on the module's status LED and forwarded to the controller via the local bus. The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system. You can find the ESI files here .

Technical data

General technical data:

  • Number of inputs: 2
  • Connection type: push-in terminal
  • Connection technology: 2-wire, shielded, twisted pair
  • Signal type: Differential
  • Supported sensor types: B, C, E, J, K, L, N, R, S, T, U
  • Value range: See details of the sensors
  • ADC resolution: 24 bit
  • Representation: 16 bits including sign
  • Accuracy typ.: 0.3% of measuring range; Type K
  • Resolution: 0.1 °C, 0.1 °F
  • Unit: Switchable, °C or °F
  • Conversion time typ.: 240 ms for 1 channel, 480 ms for 2 channels
  • Overload protection / Common Mode: Max. DC 9.9 V
  • Nominal voltage (UL/UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
  • Current consumption UL: 42 mA
  • Current consumption UP: 12 mA
  • Maximum power consumption of the module: 1.2 W
  • Bit width of the input data in the process data image, including fill bits, channel-granular adjustable: 10 bytes
  • Parameterization: Via ctrlX Works (start parameters)
  • Configuration: No address or configuration setting required
  • Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 86 g (module including plug)
  • Potential isolation: DC 1200 V UP to UL, DC 707 V UP/UL to FE, tested for 60 s each (not evaluated by UL)
  • EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
  • Installation position: Vertical, on a horizontal mounting rail
  • Marking, approvals: CE, UKCA, UL

Downloads

operating instructions
