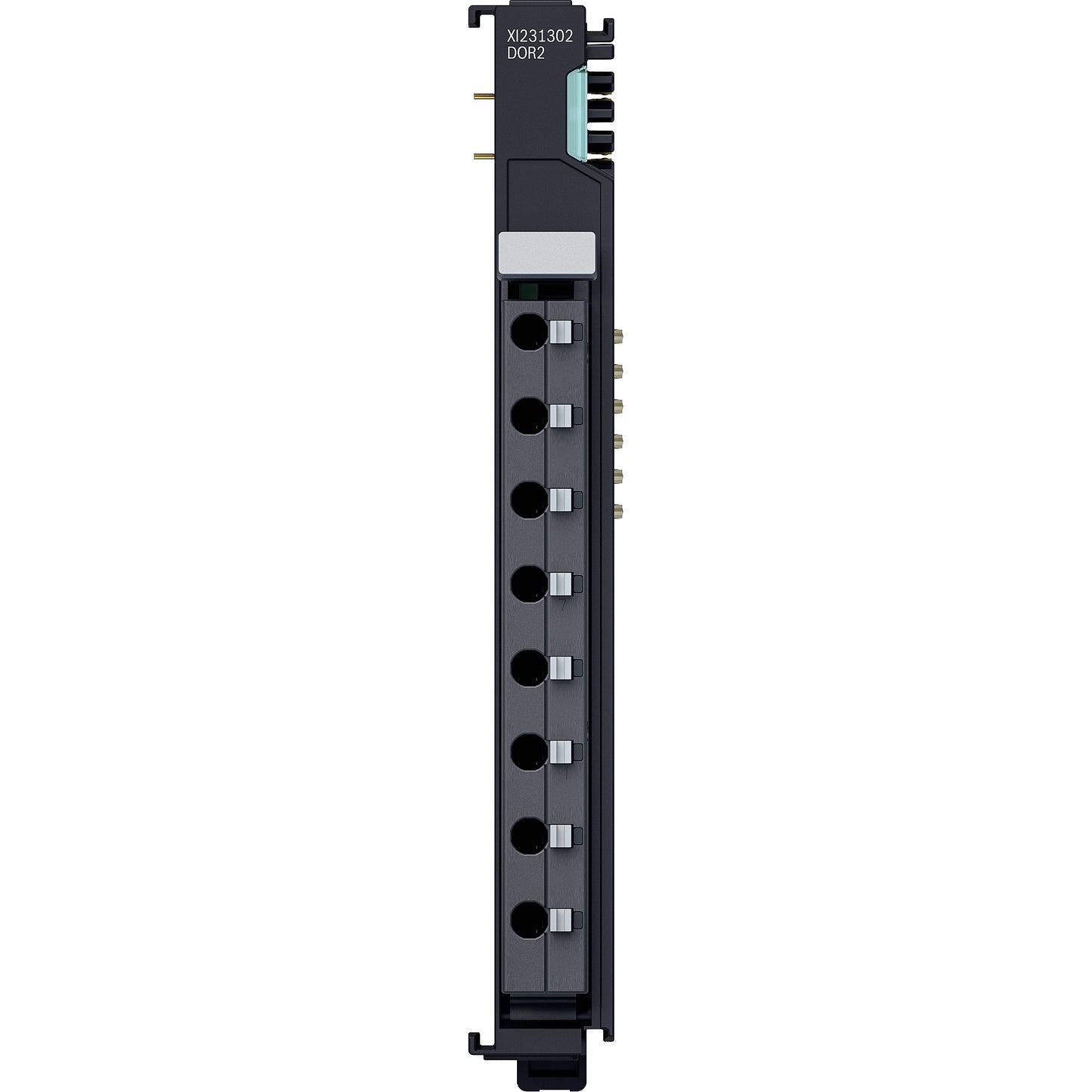

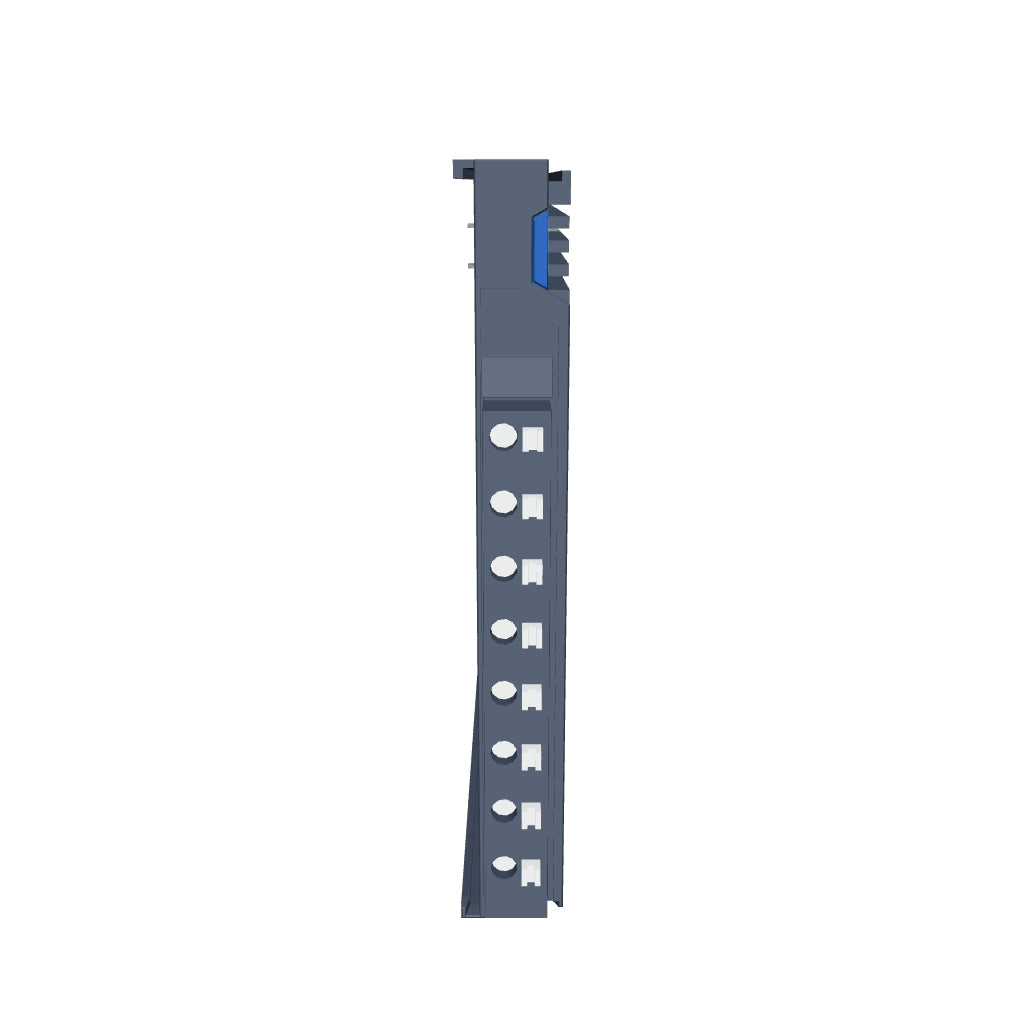

Relay output module XI231302 ctrlX I/O 2-channel (250 VAC, 1 A), changeover contact - R911406103

General technical data:

• Number of channels: 2, changeover contact
• Connection type: Push-in
• Load types: Ohmic, Inductive
• Switching voltage: AC 12 V to 250 V (50/60 Hz), DC 12 V to 250 V
• Maximum switching current for general use and resistive load: 1 A at AC ≤ 250 V, 1 A at DC 30 V
• Maximum switching current for pilot duty switching operation: 0.15 A at DC ≤ 250 V
• Short-time inrush current: 3-fold overload
• Minimum load: 100 mA (DC 12 V)
• Overload protection: External fuse required
• Switching frequency max.: 6/min (at rated load)
• Response time max.: 12 ms
• Bounce time max.: 8 ms
• Release time max.: 5 ms
• Mechanical switching cycles (min.): 10 × 10^6
• Electrical switching cycles (min.): 1 × 10^6
• Nominal voltage (UL/UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
• Current consumption UL: 29 mA
• Current consumption UP: 25 mA
• Maximum power consumption of the module: 1.2 W
• Bit width in the process image: 2 bits
• Configuration: No address or configuration settings required
• Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
• Weight: 100 g (module including plug)
• Potential isolation: DC 1200 V UP to UL, DC 707 V UP/UL to FE, AC 3000 V UP/UL to relay contacts, AC 3000 V housing to relay contacts, AC 3000 V relay contacts Ch. 1 to Ch. 2
• EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
• Installation position: Vertical, on a horizontal mounting rail
• Markings, approvals: CE, UKCA, UL
