Bosch Rexroth

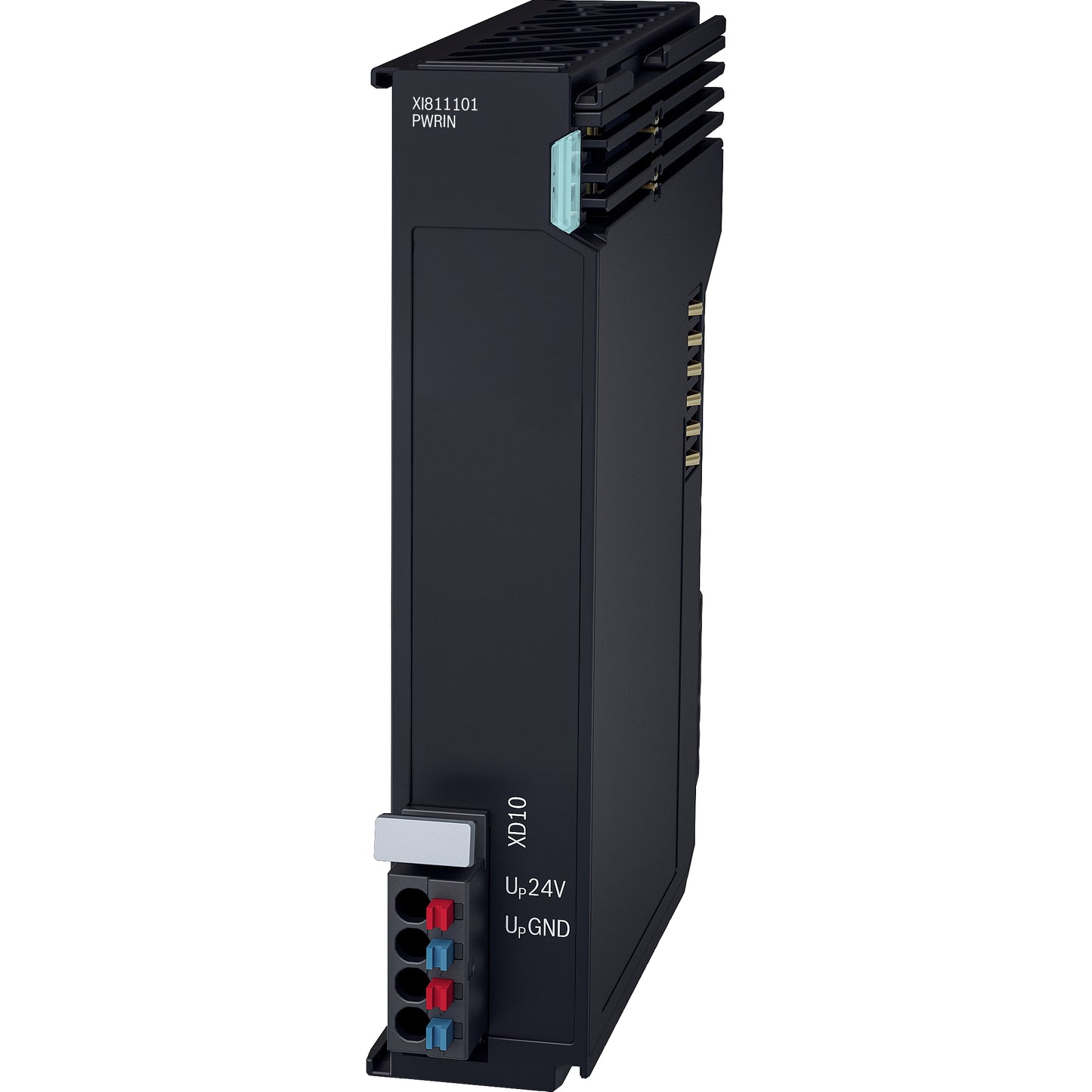

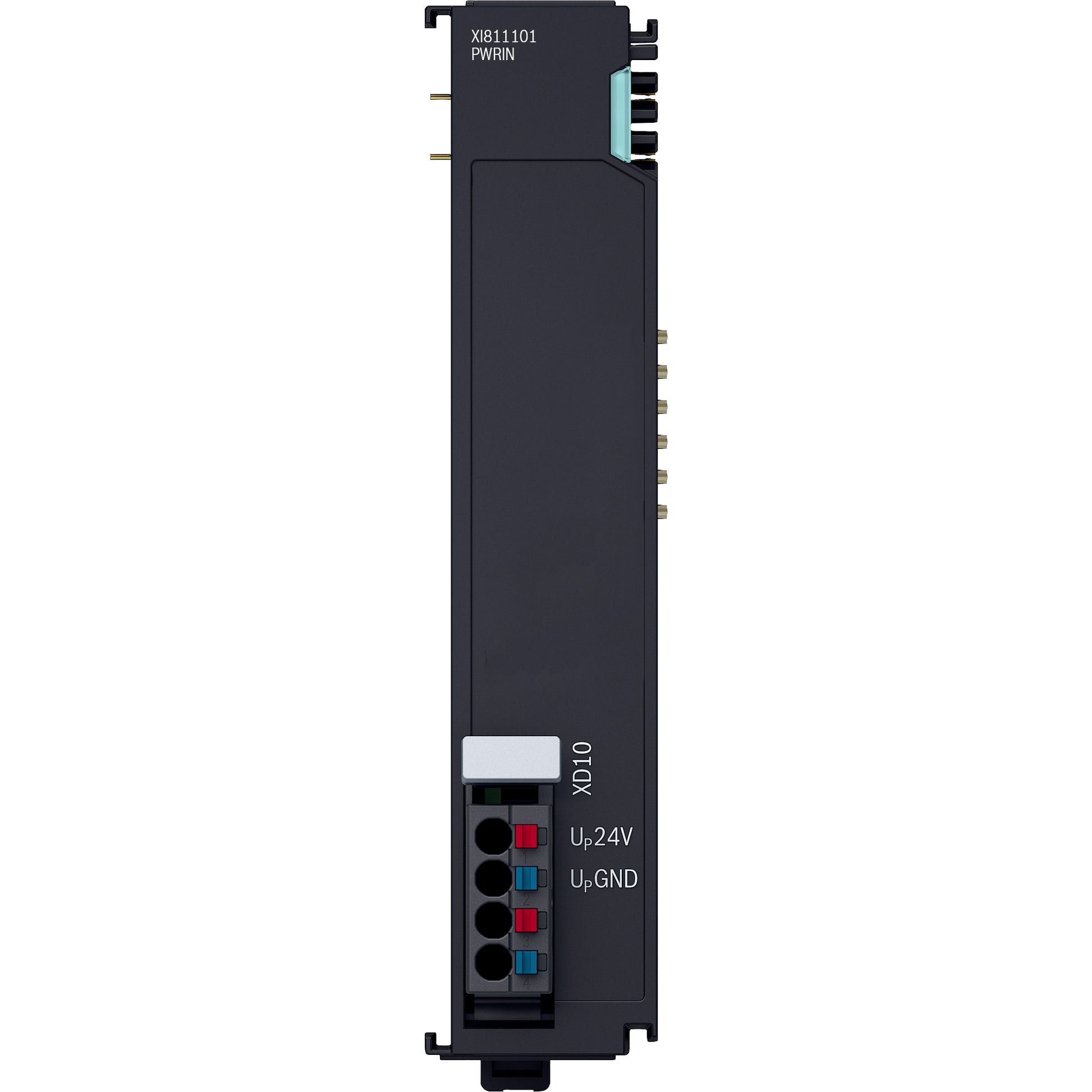

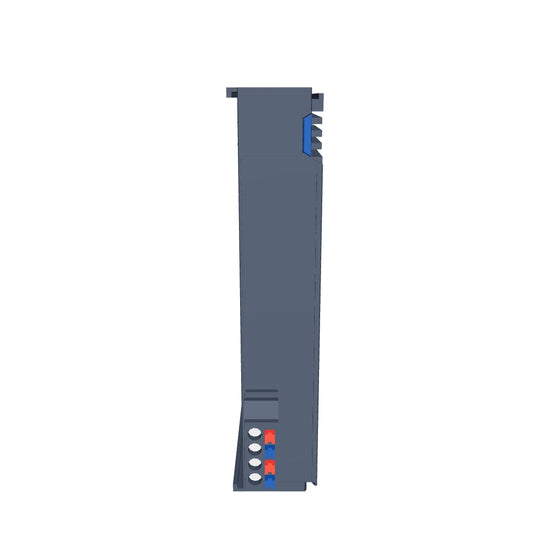

Power feed module XI811101 ctrlX I/O - R911406093

Power feed module XI811101 ctrlX I/O - R911406093

€89,00 EUR
€89,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager - Lieferzeit 2-5 Werktage*

The modular, compact device structure of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have a robust design and mechanics, are easy to handle, have a fast response time and are quick to install - both in the control cabinet and in the field. Open communication standards enable you to perfectly integrate the I/O modules with maximum availability.

The corresponding ESI files are available for integration into the higher-level system. You can find the ESI files here .

Technical data

General technical data:

  • Connection technology: Push-in
  • Nominal voltage (UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
  • Current consumption UP at nominal voltage 24 V: Typ. 1 mA (without I/O modules), max. 8 A (entire system with I/O modules)
  • Power consumption UP at nominal voltage 24 V: Typ. 0.024 W (without I/O modules), max. 192 W (total system with I/O modules)
  • Reverse polarity protection (UP): Present
  • Protection (UP): No internal protection. Protection against overload must be provided by the operator through an external fuse.
  • Overvoltage protection UP: Present, in case of overvoltage the external fuses can trip.
  • Transient protection UP: Available, suppressor diodes, pulse load up to 1500 W
  • Voltage dips at power supply interfaces: PS1 <1 ms, evaluation criterion A
  • Local bus connection: Passive terminal, no participant on the local bus
  • Dimensions: 20 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 100 g (module including plug)
  • Potential isolation: DC 1200 V UP to UL, DC 707 V UP/UL to FE, tested for 60 s each (not evaluated by UL)
  • EMC immunity: According to EN 61000-6-2 and EN 61000-6-4 Installation position Vertical, on a horizontal mounting rail
  • Marking, approvals: CE, UKCA, UL

Downloads

operating instructions
