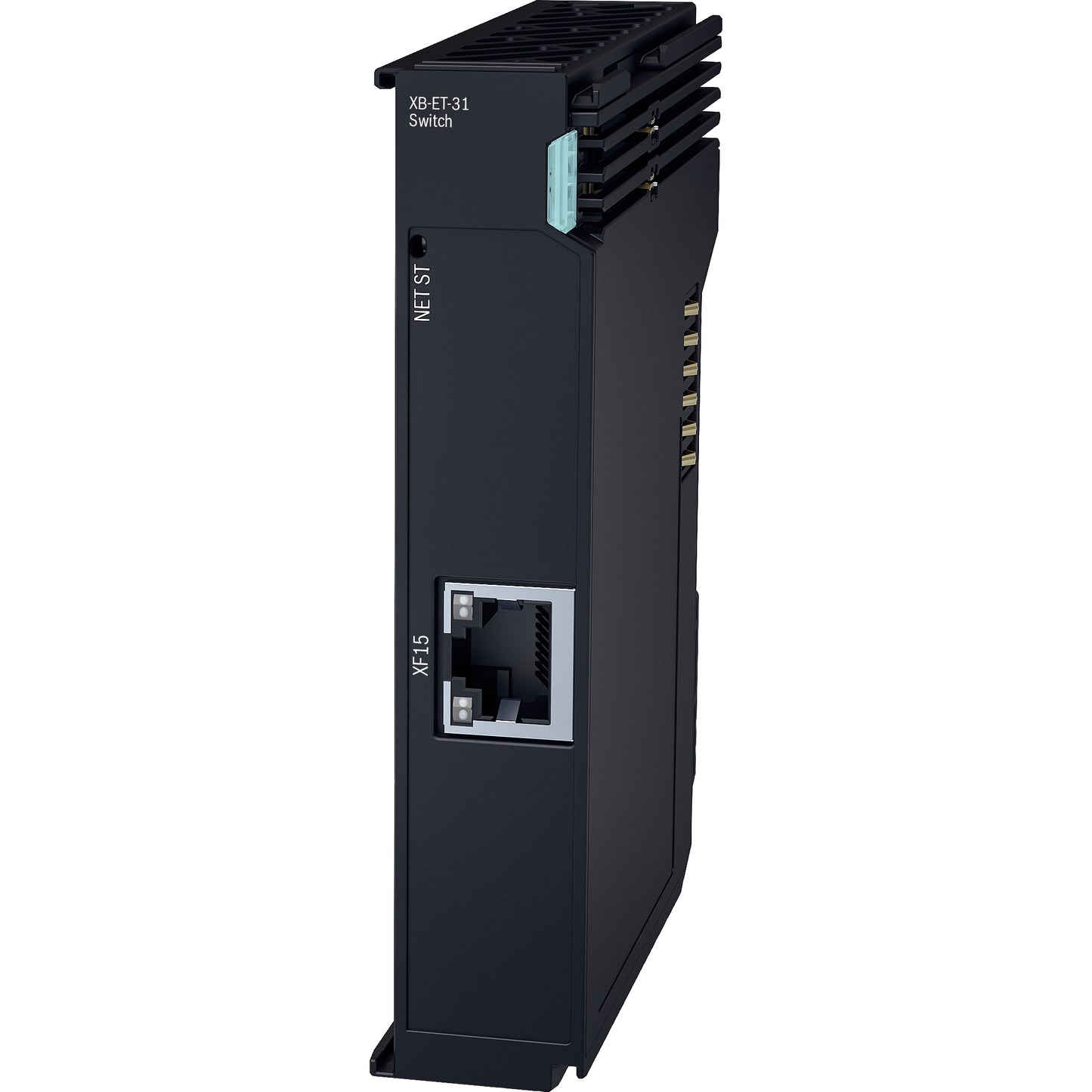

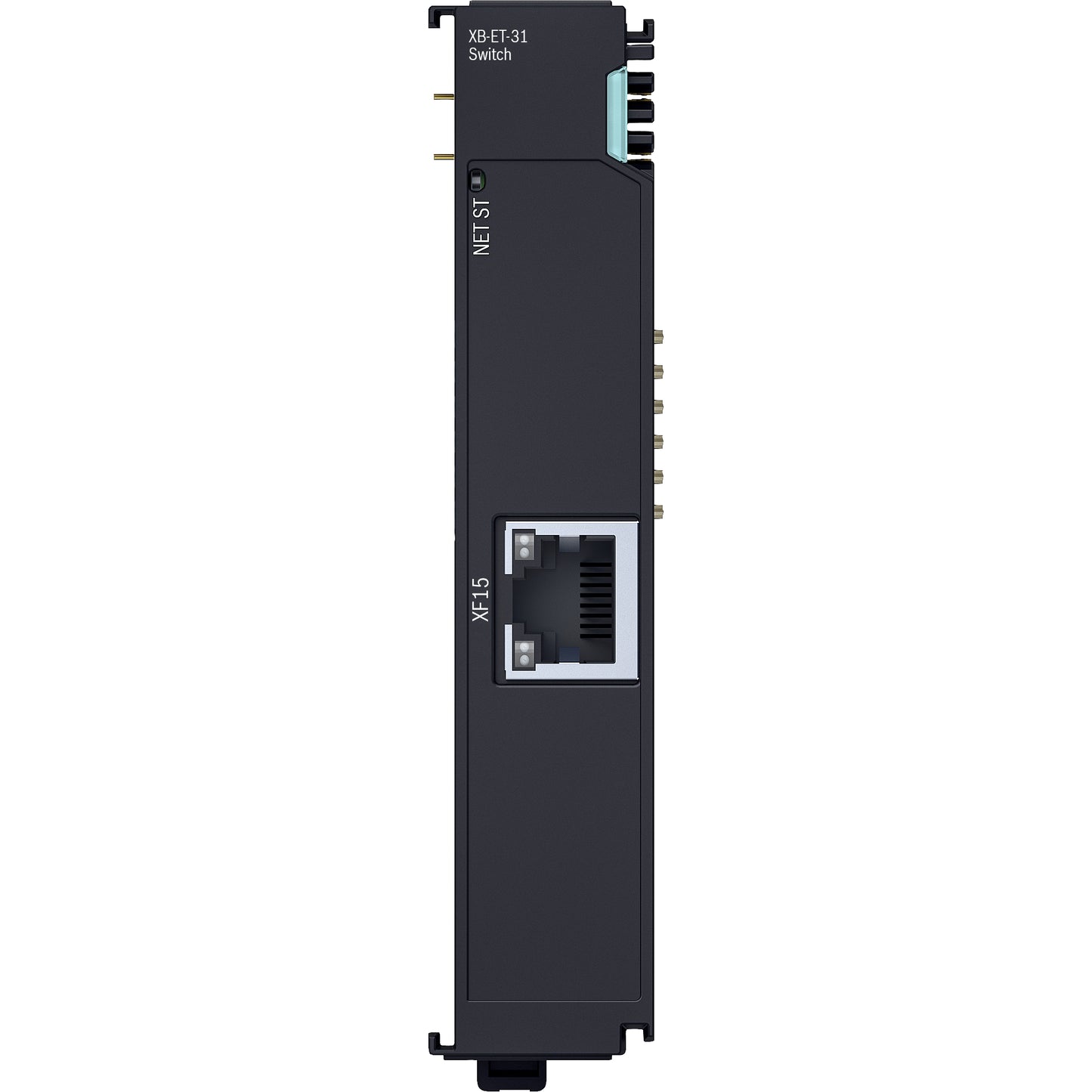

Ethernet switch port branch XB-ET-31 ctrlX I/O - R911419351
Ethernet switch port branch XB-ET-31 ctrlX I/O - R911419351
Couldn't load pickup availability
The Ethernet switchport branch XB-ET-31 is used for the decentralized connection of any Ethernet device within a modular ctrlX I/O station. The Ethernet communication of the connected devices is forwarded fully transparently and collision-free through the EtherCAT local bus. The switchport branch can be used at any position within the ctrlXI/O station. No configuration is required.
The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.
The corresponding ESI files are available for integration into the higher-level system. You can find the ESI files here .
Technical data
Technical data
General technical data:
- Connection technology: RJ45
- Number of outputs: 1
- Potential separation: DC 707 V UL to FE
- Nominal voltage UL: DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
- Current consumption UL: Max. 45 mA
- Maximum power consumption of the module: 1.1 W
- Dimensions: 20 mm × 105 mm × 85 mm (width × height × depth)
- Weight: 100 g
- EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
- Installation position: Vertical, on a horizontal mounting rail
- Marking, approvals: CE, UKCA, UL
