EtherCAT junction XB-EC-31 ctrlX I/O - R911406092

EtherCAT junction XB-EC-31 ctrlX I/O - R911406092

€120,00 EUR
€120,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager - Lieferzeit 2-5 Werktage*

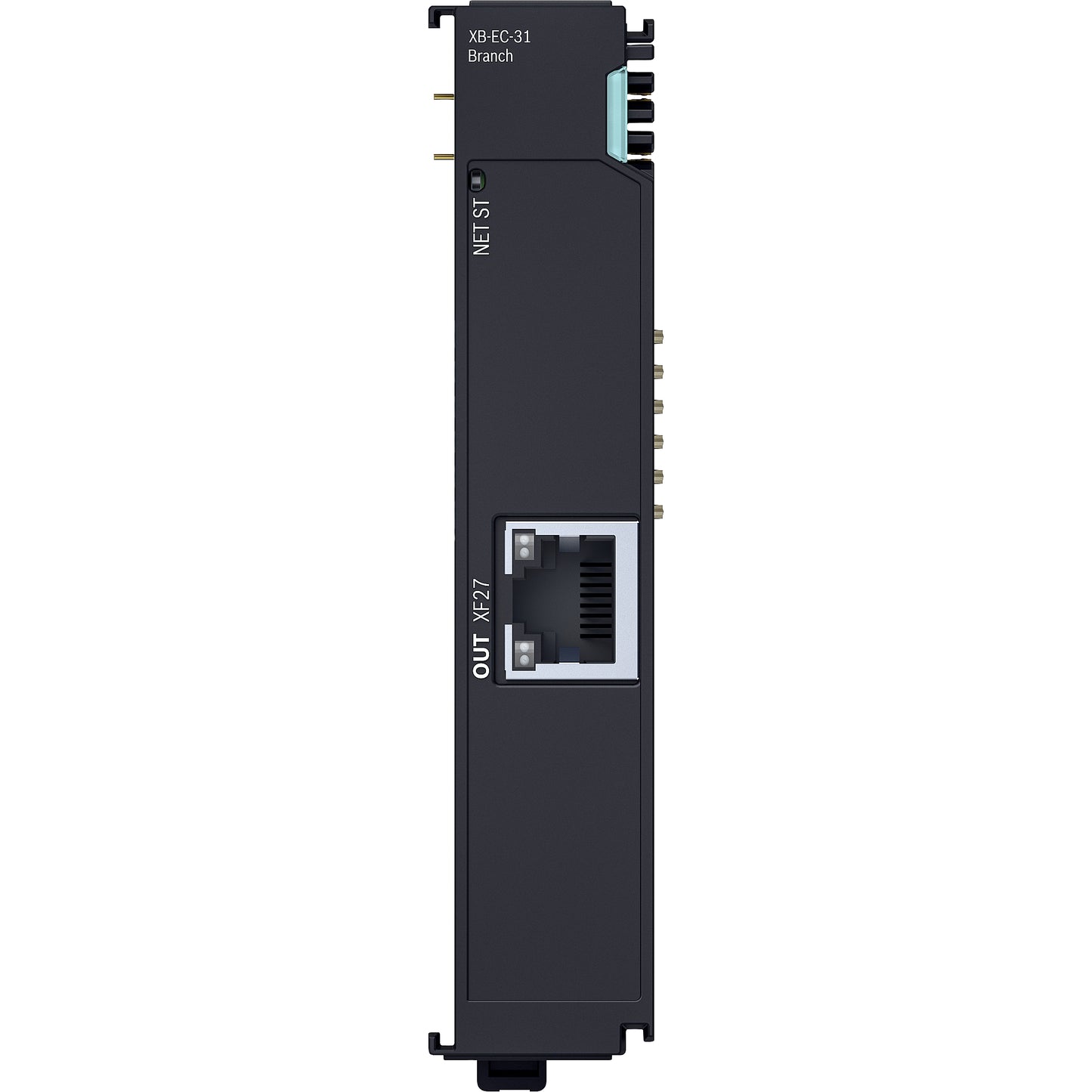

The 1-port EtherCAT branch XB-EC-31 is used to decouple the EtherCAT local bus from a ctrlX I/O station. The module can be used anywhere between the ctrlX I/O modules and enables the creation of EtherCAT star topologies. By using several XB-EC-31 in one station, modular EtherCAT topologies can be implemented. The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system. You can find the ESI files here .

Technical data

General technical data:

  • Connection technology: RJ45
  • Number of outputs: 1
  • EtherCAT OUT: XF27
  • Nominal voltage UL: DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
  • Current consumption UL: Max. 40 mA
  • Maximum power consumption of the module: 0.9 W
  • Dimensions: 20 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 100 g (module including plug)
  • Potential isolation: DC 1200 V UP to UL, DC 707 V UP/UL to FE, tested for 60 s each (not evaluated by UL)
  • EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
  • Nominal voltage UL/UP: DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
  • Installation position: Vertical, on a horizontal mounting rail
  • Marking, approvals: CE, UKCA, UL

Downloads

operating instructions

*Applies to deliveries to Germany. Delivery times for other countries and information on calculating the delivery date can be found here .
